MDPE made via Spherilene
MD-3520 is a medium density polyethylene resin (MDPE), 1-butene co polymer, obtained by gas phase technology process. This grade designed for the production of drip irrigation tapes, pipes andmono or coex film applications. In this grade excellent processability combined with good mechanical properties. MD-3520 can be blended with different PE grades to modify the final properties of the products.
MDPE: MD-3520
Characteristic Properties
Excellent extrusion properties
Good mechanical properties
Density: 0.934 – 0.936
Additives
Thermal Antioxidant (Process Stabilizer)
Catalyst neutralizer (acid scavenger, lubricant)
Anti UV
PPA

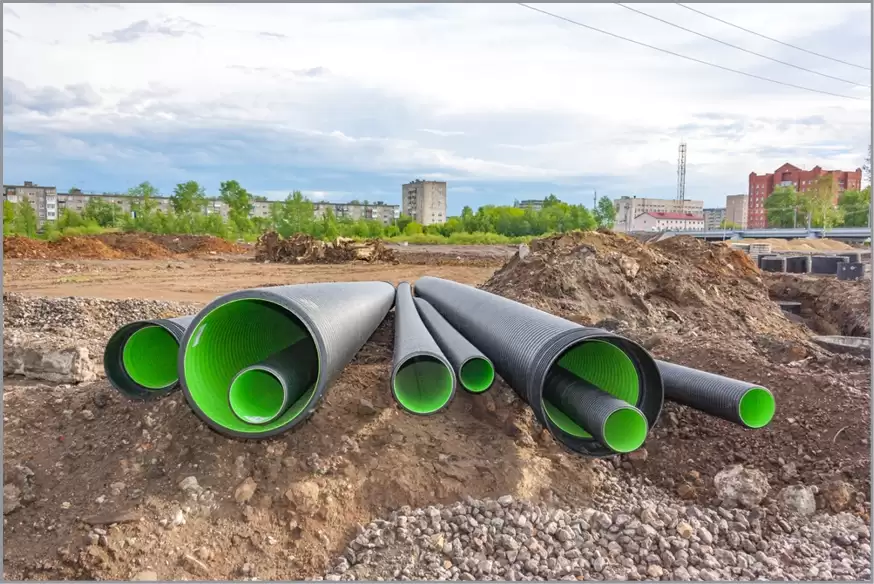

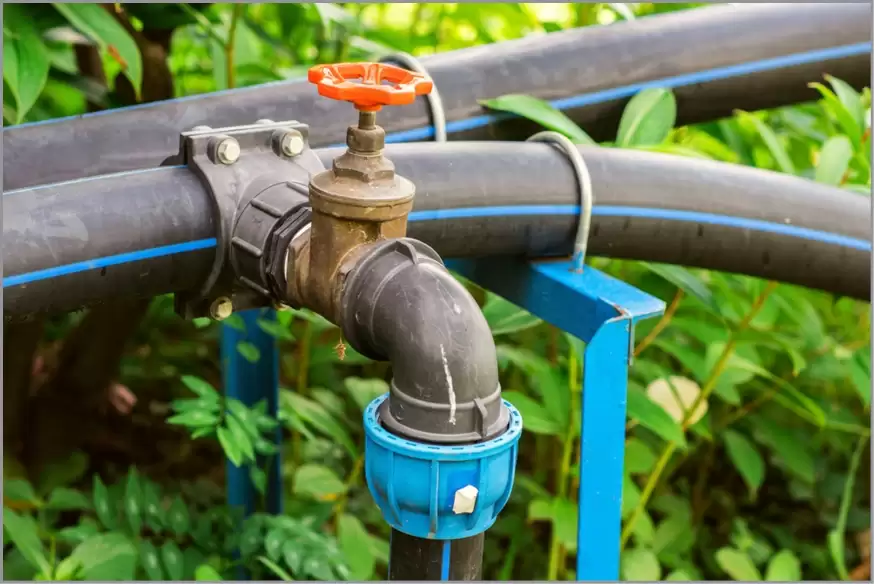

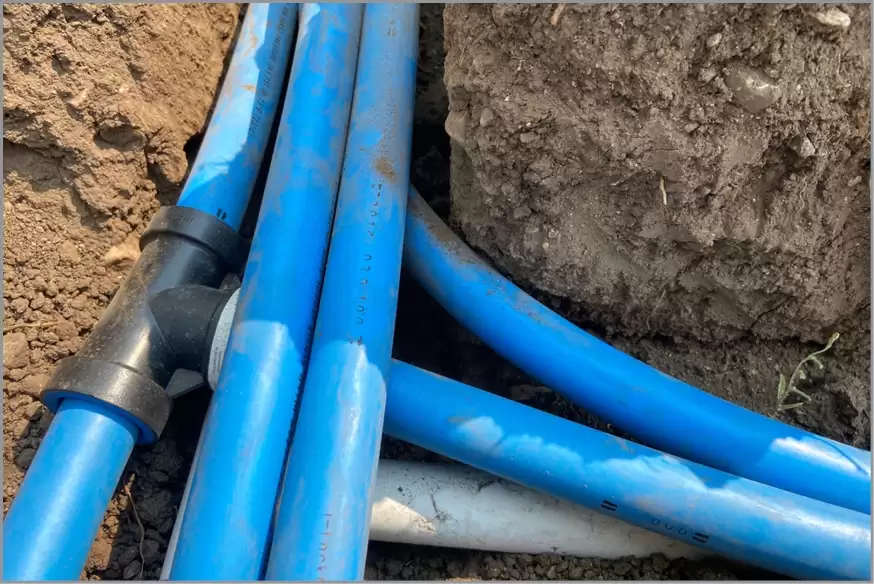

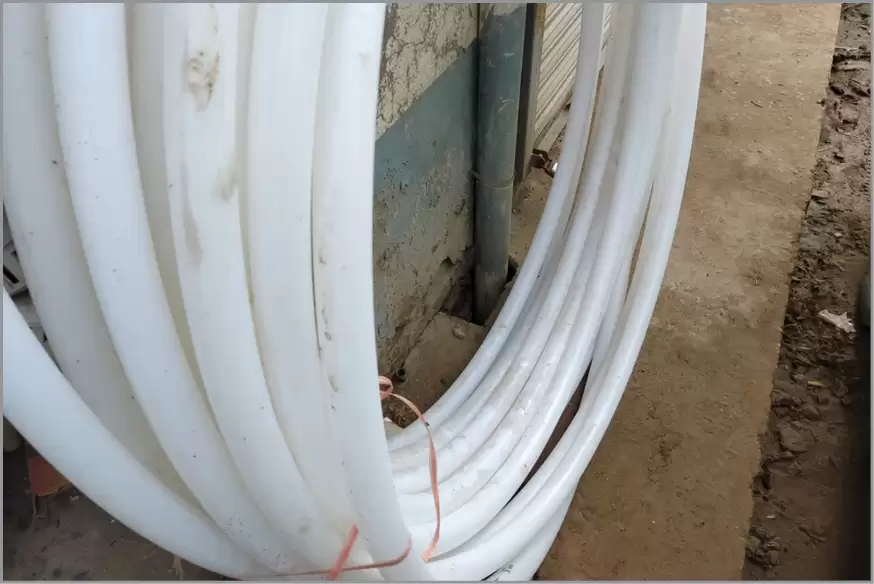

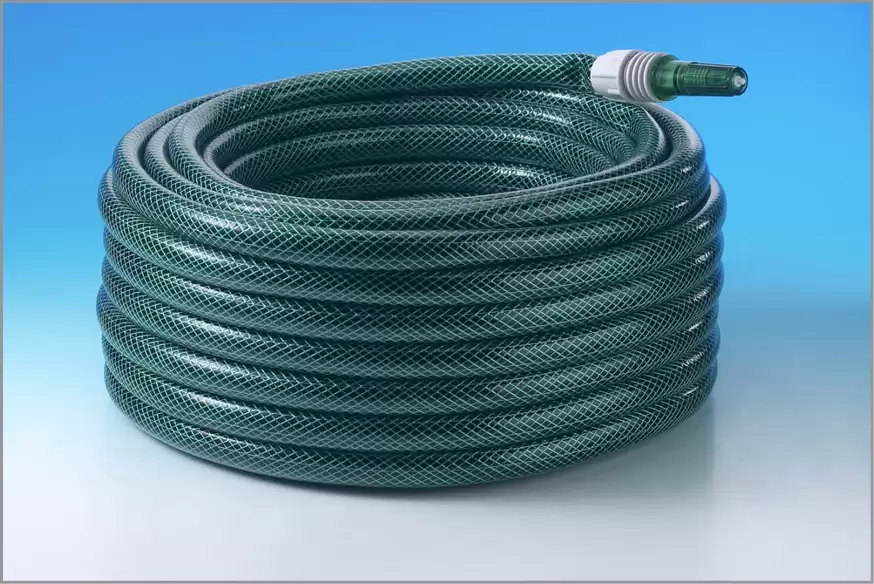

tapes and pipes:
Heavy duty shopping bag:
Heavy duty film applications:
FSS automatic packaging films:
| Resin Properties | Unit | Typical Value | Test Method |
| Melt Index (190 °C / 2.16Kg) | g/10 min | 0.6 | D1238 |
| Density | g/cm3 | 0.935 | D1505 |
| Thermal properties @ | |||
| Vicat Softening Point | °C | 118 | D1525 |
| Melting Point | °C | 129 | D3418 |
| Mechanical Properties @ | |||
| Flexural modulus | MPa | 640 | D790 |
| Tensile Strength at Yield | MPa | 18 | D638 |
| Tensile Strength at Break | MPa | 25 | D638 |
| Tensile Elongation at Break | % | >800 | D638 |
| Notched Izod Impact @ 23 °C | j/m | 600 | D256/A |
| Hardness | Shore D | 61 | D2240 |
| ESCR | hr | >1000 | 1693 |
| Oncompression molded according to ASTM D1928C |
