LL 0220 AA

MFR: 2.2 Density: 0.920 Application: Stretch wrap, Oriented Tape. Base resin for power cable compound insulation (low voltage), fiber optic jacketing

C4-LLDPE-Cast Film(Innovene license)

Petrochemical: Shazand arak

LL0220AA is a linear low density polyethylene copolymer containing butene-1 as a co-monomer.

LL0220AA offers the following advantages when it processed by the cast extrusion process:
− Good balance of mechanical properties.
− Good optical properties.
− Good cling performance.

LL0220AA should be processed in machinery designed for LLDPE.
Melt temperature range in the cast process are normally 240°C-280°C and in lean blends for blown film are 165°C-215°C.

LL0220AA should be stored in the dry condition below the 50°C and avoided from the exposure of direct sunlight.

* LL0220AA is suitable for food contact.

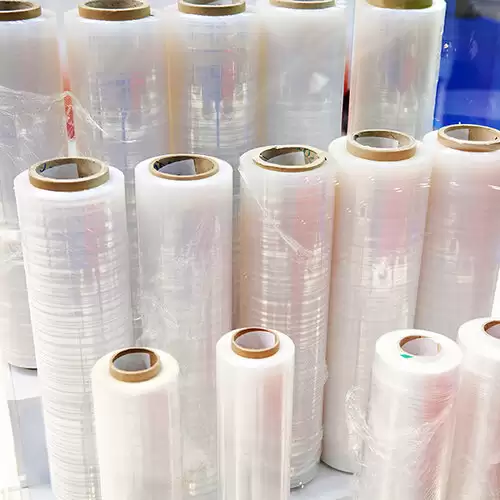

  • LL0220AA has been specially developed for production of hand wrap and other cast stretch films such as oriented tapes.:

  • It can also be used as a blending partner in LDPE or LLDPE in both cast and blown film applications.:

  • LL0220AA also can be used as compounds for low voltage power cable insulation or fibre optic jacketing.:

C4-LLDPE-Cast Film(Innovene license)
Typical properties Test method (DIN) Unit Value
MFI@190°C, 2.16 kg D1238 gr/10min 2 – 2.5
Density D2839 gr/ml 0.917-0.920
Film *
Tensile Strength@Yield, MD/TD D638 Mpa 10/9
Elongation@Break, MD/TD D638 % 600/810
Tensile Strength@Break, MD/TD D638 Mpa 40/31
Tear Strength, MD/TD D1922 gr/25mic 90/280
Haze D1003 % 13
Gloss (45°) D2457 Rating 50
Values shown are averages & are not to be considered as product specifications
* 38 microns, 2:1 Blow ratio / MD=Machine Direction, TD=Transverse Direction

LL 0220 AA
