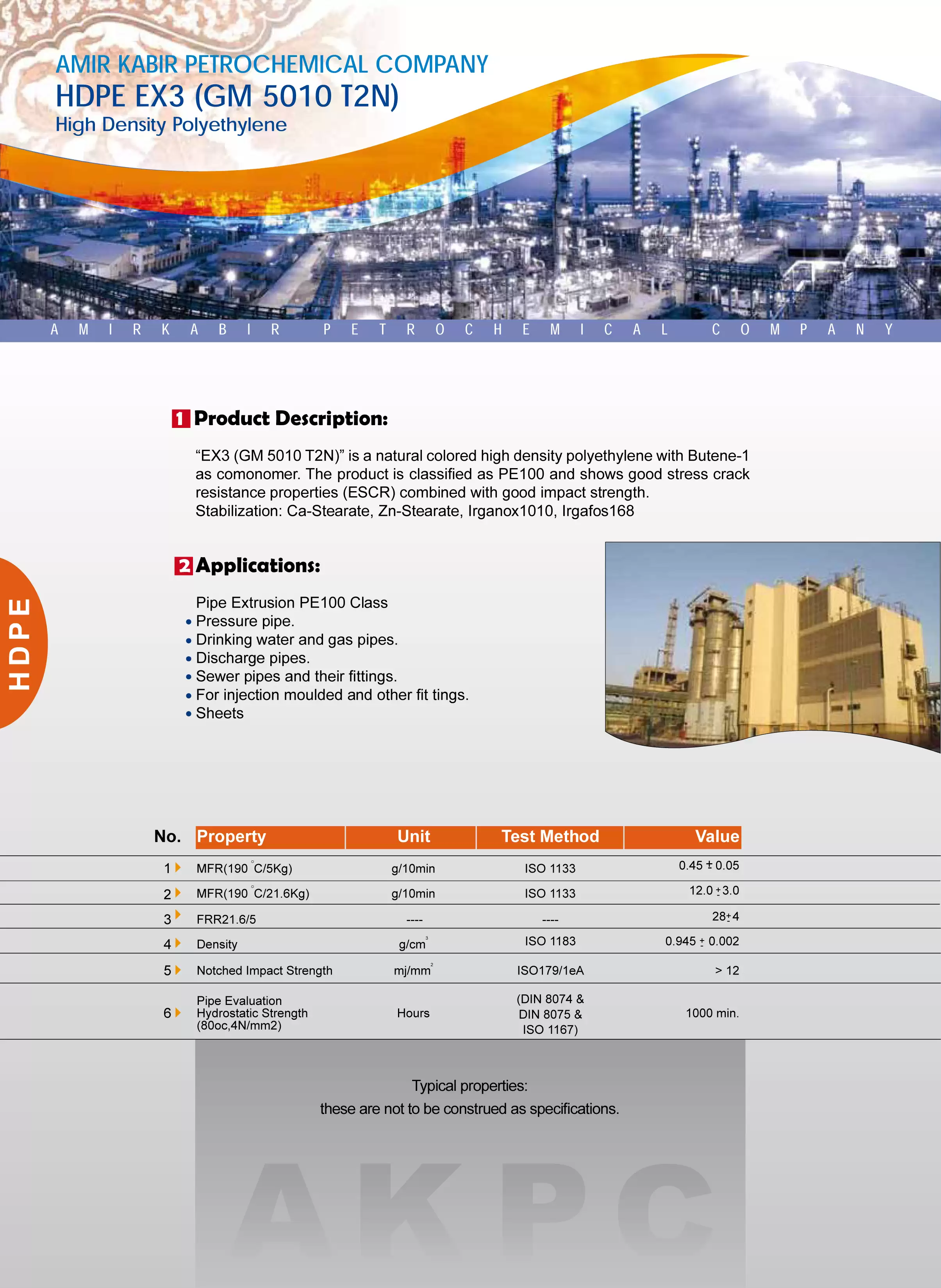

EX3 (GM 5010 T2N)

Hscode: 39012090 Mfi: (190 °C/21.6 Kg) : 12.0 ± 3.0 / (190 °C /5Kg) : 0.45 ± 0.05 Density: 0.945 ± 0.002 Application: Food Grade, Pipe Extrusion PE100 Class, Pressure pipe, Drinking water and gas pipes, Discharge pipes, Sewer pipes and their fittings

Petrochemical: Amirkabir, Shazand arak

“EX3” is a natural colored high density polyethylene with butene-1 as comonomer.

The products is classified as PE100 and shows good stress crack resistance properties (ESCR)

combined with good impact strength.

Stabilization: Ca-Stearate, Zn-Stearate, Irganox1010, Irgafos168.

  • EX3 (M5010T2N) is high molecular weight, high density polyethylene copolymers, developed as general purpose resin for use in pressure and non-pressure pipes. A minimum service life of 50 years is achievable under appropriate pressure and temperature conditions. EX3 (GM5010T2N) offer excellent chemical resistance and environmental stress crack resistance.:

  • EX3 (GM5010T2N) is suitable for extrusion into a full range of pipe and fittings sizes, where high density resins are required.:

  • EX3 (GM5010T2N) is suitable for use in transport of a wide range of fluids for industrial, rural and mining applications.:

  • Suitability for use in any application should be determined by appropriate performance testing.:

  • EX3 (GM5010T2N) is suitable for food contact.:

  • Food Grade.:

  • Pipe Extrusion PE100 Class.:

  • Pressure pipe.:

  • Drinking water and gas pipes.:

  • Discharge pipes.:

  • Sewer pipes and their fittings.:

  • For injection moulded and other fittings.:

  • Sheets.:

Property Value  Units Test Method
MFI (190 °C /5Kg) 0.45 ± 0.05 g/10min ISO 1133
MFI (190 °C/21.6 Kg) 12.0 ± 3.0 g/10min ISO 1133
FRR21.6/5 28 ± 4 —– —–
Density 0.945 ± 0.002 g/cm 3 ISO 1183
Notched Impact Strength >12 mJ/mm2 ISO 179/1eA
Pipe Evaluation Hydrostatic
Strength (80 °C,5N/mm 2)
1000 min Hours DIN 8074
DIN 8075
ISO 1167

Palletized As 1375 kg/wooden or Plastic Pallet & 22mt/Truck
(for HDPE EX3 Loose bag 25kg or jumbo bag 1000kg)

EX3 Amir Kabir

EX3 Shazand
